Corrosion Protection for Beam
DKiT® is recommended to protect all kind of structures from corrosion. It is applied on the structure base, on the junction area with concrete basement which is the weakest part due to corrosion developement.
Initially, DKiT® has been co-developed in partnership with the French National Railway Company (SNCF) for railway industry to reinforce catenary supports (HEA beams) but this product is suitable for all structure designs.
After 3 years of testing (decohesion and mechanical tests), over a thousand of beams have been protected thanks to this product.
DKiT® is a multi-layers product made of 3 specific coatings :
- Anti-corrosion epoxy resin
- Waterproofing epoxy resin
- Anti-UV & impact protective coating (elastomeric material)
USES
- Avoid corrosion and water infiltration in the concrete basement
- Ensure structures integrity and sustainability
- Protect from climatic aggressions, UV and impacts
APPLICATIONS
- All beam designs
- All structure designs built in concrete
- Old and new installations
BENEFITS
- Installation without stopping traffic or production
- Complex maintenance avoided
- Cost-effective installation
- Fast and easy application
DKiT® Implementation Steps

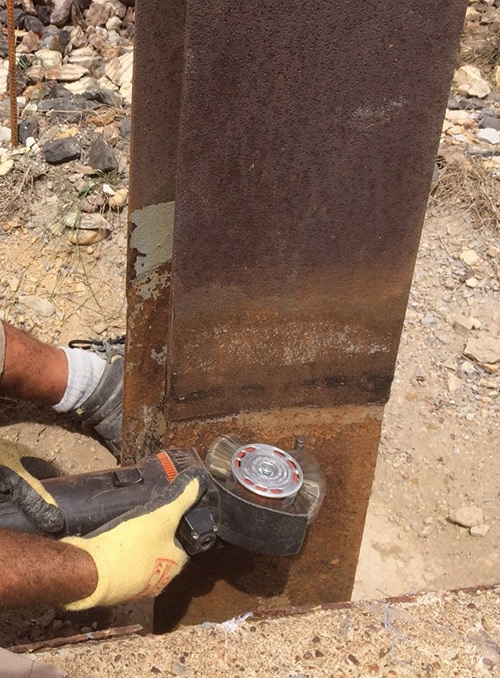

Surface preparation Sa2½ / St3
and roughness Rz > 60 µm

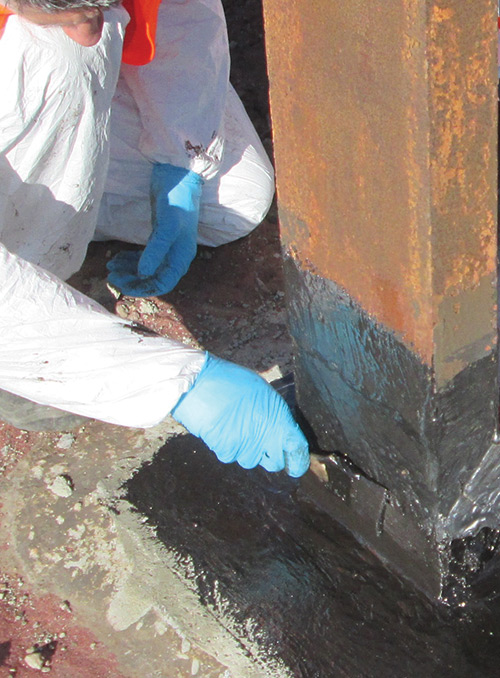

Epoxy resin application
for beam/concrete protection

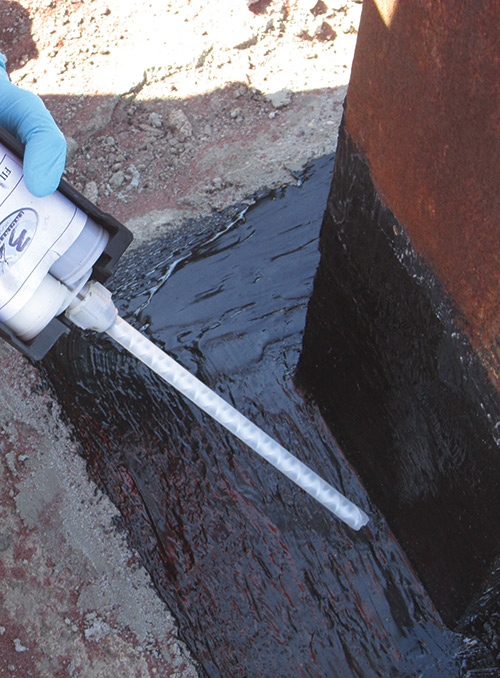

Waterproofing
by elastomeric resin application

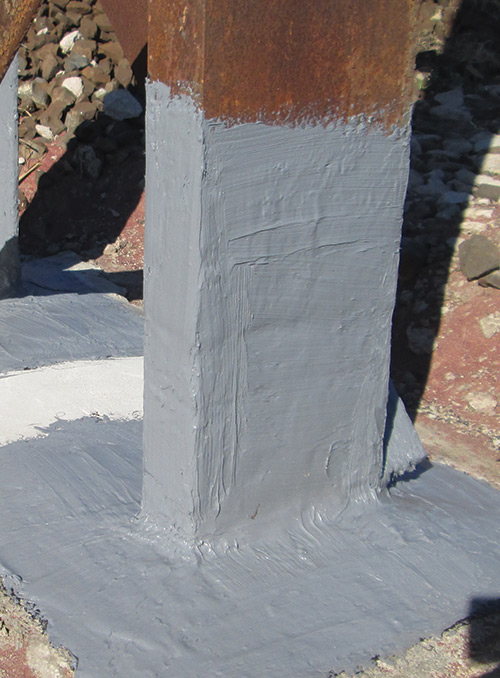

Protective coating application
