REINFORCEKiT® PATCH

Long-term Repair System for Damaged Tank

REINFORCEKiT® PATCH is a lasting reinforcement solution for damaged tanks and pressured vessels suffering from internal and external corrosion defects.

This product is tailor-made for each repair and requires engineering and calcluations according to ISO 24.817 and ASME PCC-2.

REINFORCEKiT® PATCH is made of Kevlar® patches and 3X bi-component epoxy resin. The dimensions and number of patches, the type and quantity of resin will depend on the defect and will be defined using 3X software.

USES

  • Restore tank original integrity
  • Reinforce damaged tank area
  • Prevent further corrosion or deterioration

APPLICATIONS

  • Onshore and offshore installations
  • All tank designs and sizes
  • Service temperature up to +150°C (+302°F)
  • Compatible with most common fluid and gas

BENEFITS

  • Designed according to ISO 24.817 and ASME PCC-2
  • Online repair (except for hole)
  • Long-term repair (up to 20 years for external defect)
  • No limitation in pressure and defect size

REINFORCEKiT®4D-EC Main Technical Data

Use: TANK REINFORCEMENT – ONSHORE & OFFSHORE
Service temperature: -50°C / +150°C (-58°F / +302°F)
Application temperature: +10°C / +130°C (+50°F / +266°F)
Maximum tank diameter: No limitation
Maximum hole size: No limitation
Maximum pressure: No limitation

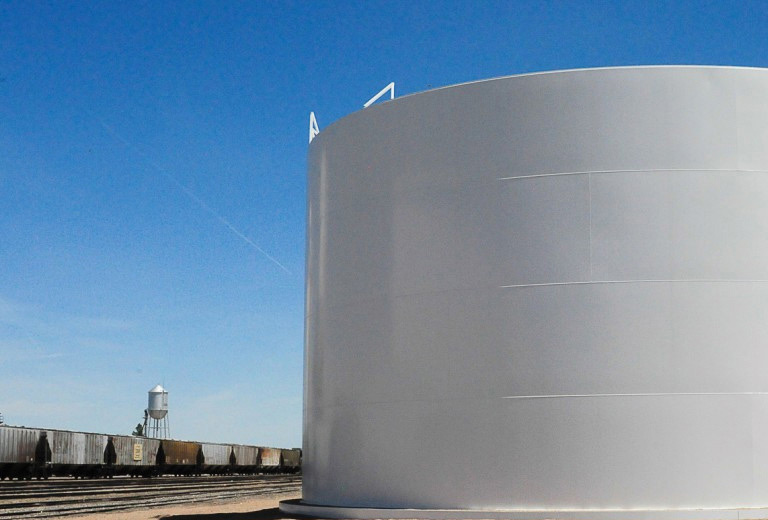

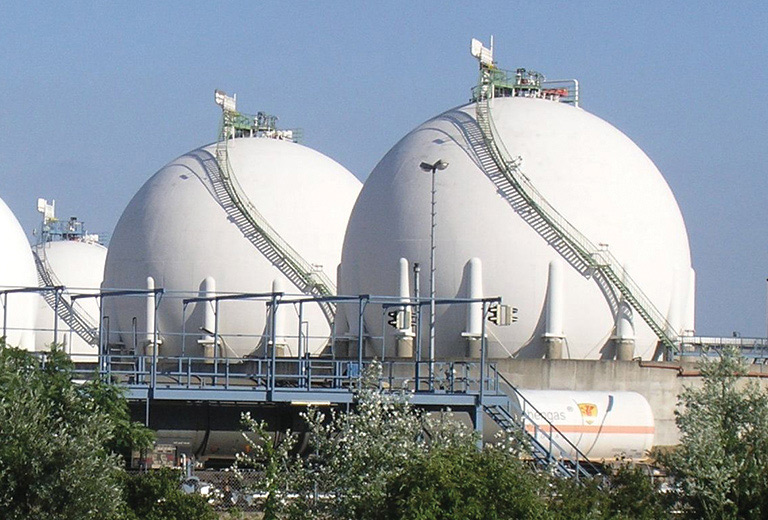

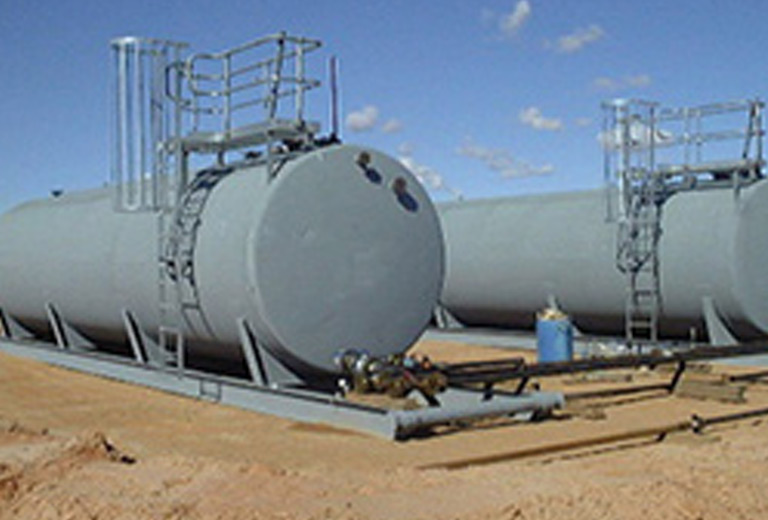

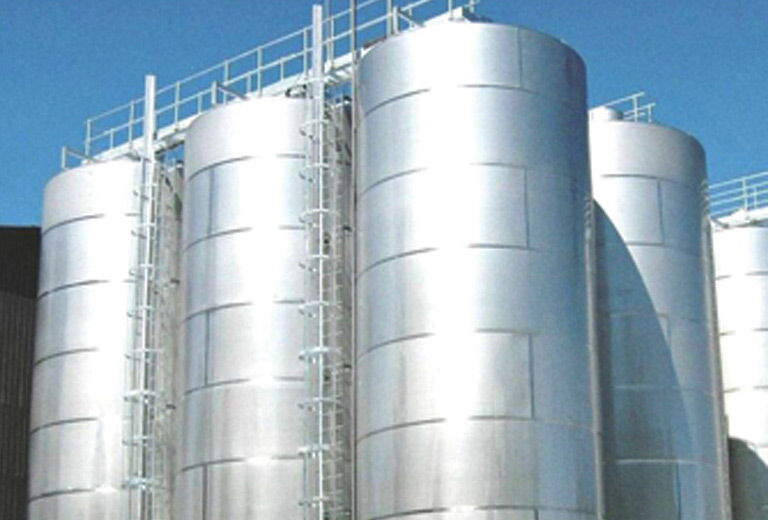

REINFORCEKiT® PATCHSuitable for all Tank designs & sizes

Tank designs & sizes
Tank designs & sizes
Tank designs & sizes
Tank designs & sizes
