Surface Preparation for Various Industries
The Bristle Blaster® technology is a MONTI patented product that removes corrosion and coatings quickly and thoroughly.
This patented technology is used in numerous industries and especially where conventional blasting methods are not possible or uneconomic.
The Bristle Blaster® combines the flexibility and the short set-up times of a hand-held tool with the results otherwise achieved with blasting: surface preparation grades comparable with Sa 2½ and roughness levels of up to 120 µm Rz. This makes Bristle Blaster® the perfect technology to perfom surface preparation for spot-repairs, touch-up jobs and preparing welds.
USES
- Remove corrosion/coating
- Create surface preparation grades comparable to Sa 2½
- Create roughness level up to to 120 μm Rz
APPLICATIONS
- Pipeline
- Steels constructions
- Wind energy
- Shipbuilding
- Offshore
- Petrochemical
- Hydraulic engineering
- Rail vehicles
BENEFITS
- Easy to operate and to transport (weight of Bristle Blaster® Pneumatic: approx. 1.2kg)
- ATEX approved for the use in Zone 1 – potentially explosive atmospheres (for Bristle Blaster® Pneumatic)
- No complex equipment, machinery or work preparation required – only compressed air or electric power supply
- No additional waste products
- Ideal for spot-repair
BRISTLE BLASTER® Technical Data

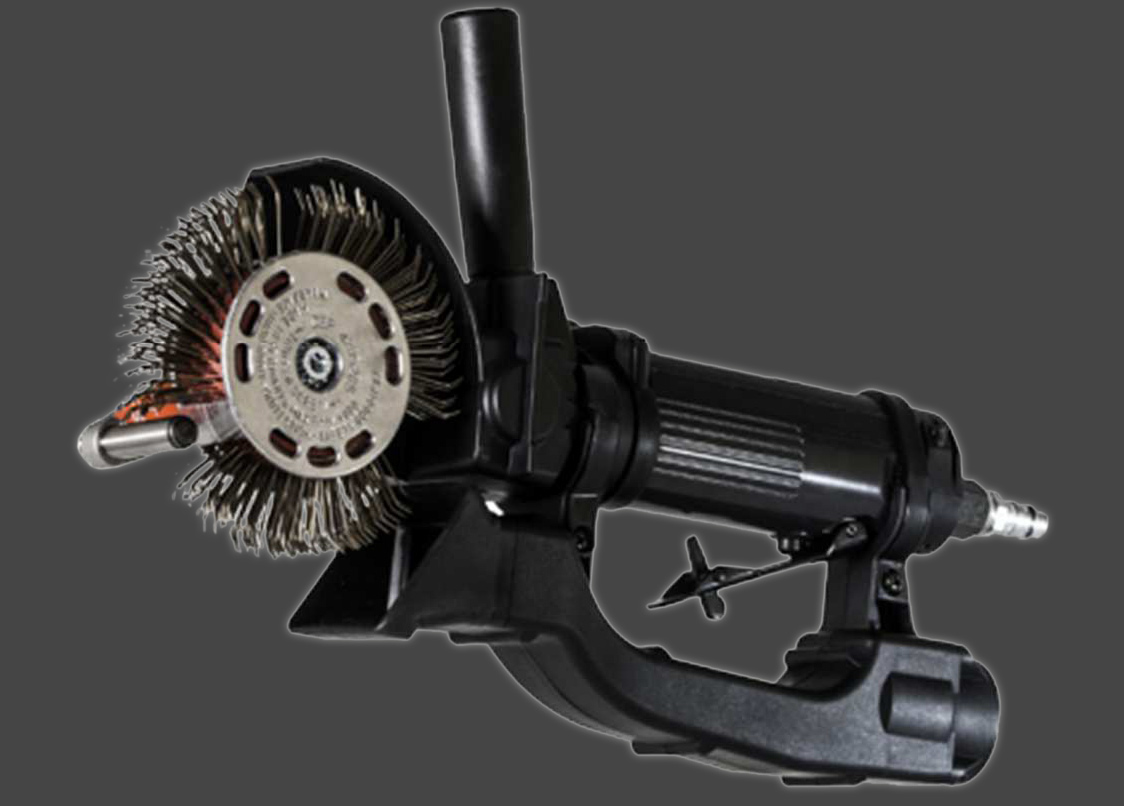

BRISTLE BLASTER®
Pneumatic
| Length: | 350 mm |
|---|---|
| Height (incl. handle): | 160 mm |
| Width: | 70 mm |
| Weight: | 1.1 kg | 2.4 lbs |
| Belt diameter (outer): | 110 mm |
| Required flow pressure: | 6.2 bar | 90 psi |
| Average air consumption: | 17.5 cfm | 0.5 m³/min) |
| Idle speed (± 5%): | 3500 rpm |
| Threaded air inlet: | Rp 1/4“ |
| Required hose diameter (interior): | 9.5 mm | 3/8“ |
| Vibration: | 2 m/sec² |
| Sound pressure level: | 83 dB(A) |

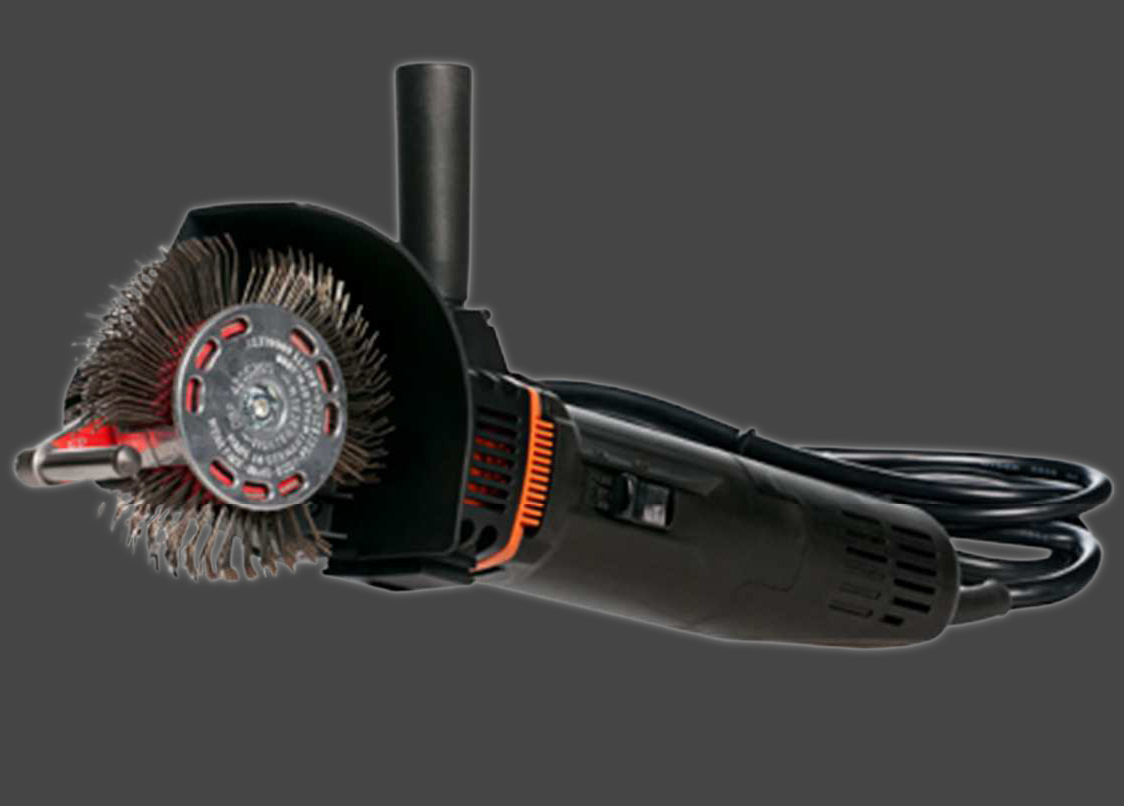

BRISTLE BLASTER®
Electric
| Details | 230V | 50 Hz | 230V | 60 Hz | 120V | 60 Hz |
|---|---|---|---|
| Length: | 400 mm | 400 mm | 400 mm |
| Height: | 180 mm | 180 mm | 180 mm |
| Width: | 100 mm | 100 mm | 100 mm |
| Weight: | 2.2 kg | 4.9 lbs | 2.2 kg | 4.9 lbs | 2.2 kg | 4.9 lbs |
| Belt diameter: | 110 mm | 110 mm | 110 mm |
| Output: | 700 W | 700 W | 700 W |
| Idle speed (±5%): | 3200 rpm | 3200 rpm | 3200 rpm |
| Vibration: | 2.8 m/sec² | 2.8 m/sec² | 2.8 m/sec² |
| Sound pressure level: | 83 dB(A) | 83 dB(A) | 83 dB(A) |
BRISTLE BLASTER® Set Components

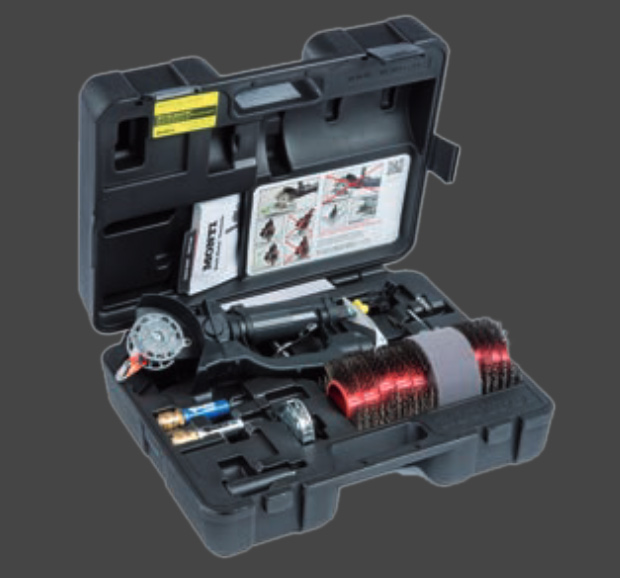

Set BRISTLE BLASTER® Industrial Pneumatic
- Drive unit Bristle Blaster® Pneumatic with air cooling and muffler
- adaptor systems for 23 mm- and 11 mm-belts
- accelerator bars for 23 mm- and 11 mm-belts
- air pressure regulators for 23 mm- and 11 mm-belts, with couplings and nipples
- dust exhaust attachment
- 5 Bristle Blaster® Belts, 23 mm
- 5 Bristle Blaster® Belts, 11 mm
- Packed in a blow mould case Art.No. SP -647-BMC
- Item Code SP-647-BMC
- As set for stainless steel or aluminum surface preparation:
incl. stainless steel Belts and stainless steel Accelerator Bars - Item Code SP-649-BMC
Set BRISTLE BLASTER® Industrial Electric
- Drive unit Bristle Blaster®
- Adaptor System for 23mm-belts
- Accelerator Bar for 23mm-belts
- 10 Bristle Blaster® belts, 23mm
- In a blow mold case
- 230 V Item Code SE-677-BMC
- 120 V Item Code SE-667-BMC
- As Set for stainless steel or aluminum surface preparation:
incl. stainless steel Belts and stainless steel Accelerator Bar - 230 V Item Code SE-678-BMC
- 120 V Item Code SE-668-BMC
BRISTLE BLASTER® Belts

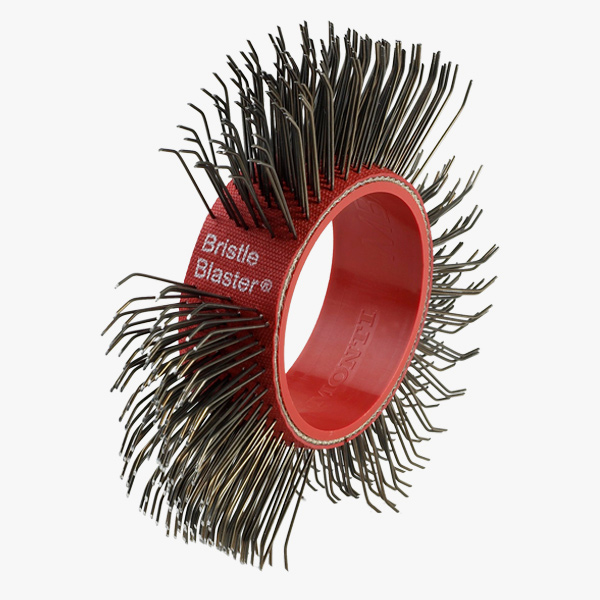

Bristle Blaster® Belt
23 mm, steel
PU 10 belts: BB-033-10
PU 5 belts: BB-033-05
PU 5 belts: BB-033-05

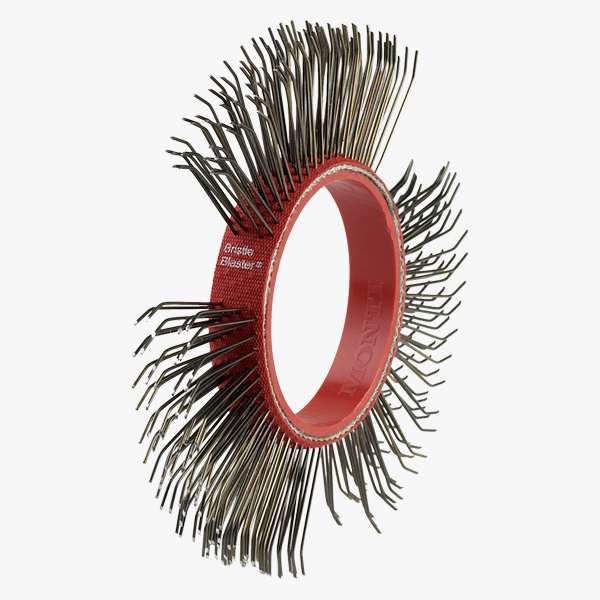

Bristle Blaster® Belt
11 mm, steel
PU 10 belts: BB-034-10
PU 5 belts: BB-034-05
PU 5 belts: BB-034-05

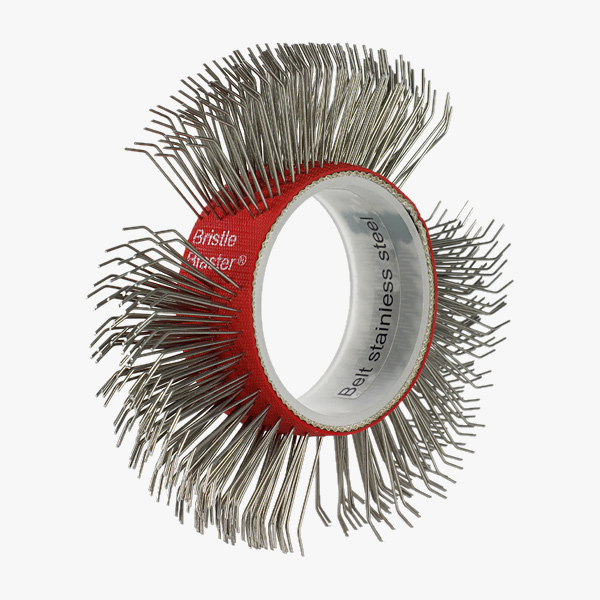

Bristle Blaster® Belt
23 mm, stainless steel
PU 10 belts: BB-102-10
PU 5 belts: BB-102-05
PU 5 belts: BB-102-05

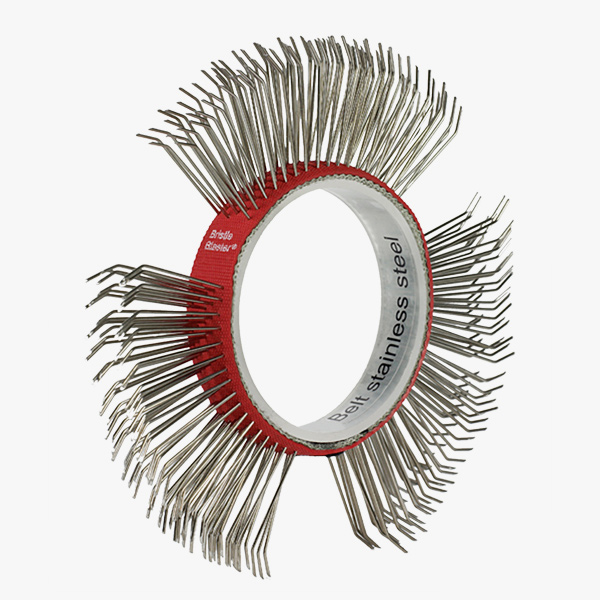

Bristle Blaster® Belt
11 mm, stainless steel
PU 10 belts: BB-103-10
PU 5 belts: BB-103-05
PU 5 belts: BB-103-05
