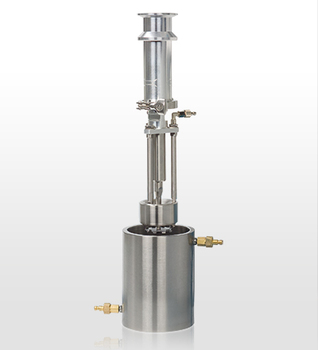

Modular basket milling system for DISPERMAT® dissolvers. Available in ceramic, nano-version and for vacuum operation.
The addition of the TML converts the DISPERMAT® into a closed basket milling system. Basket mills are extremely efficient grinding systems where a grinding basket is lowered into the millbase for dispersion.
The rotating milling tool agitates the beads inside the basket which disperses the millbase. The dissolver disc, the basket and the patented pumping wheel generate effective circulation of the millbase, helping to provide excellent dispersion results in a short period of time.

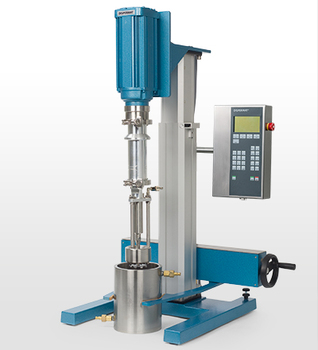

DISPERMAT® CV3-PLUS with the modular basket mill TML

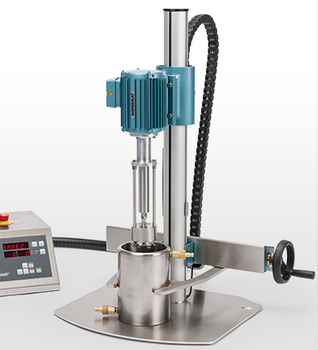

DISPERMAT® CA with the modular basket mill
DISPERMAT® CN80 with the modular basket mill

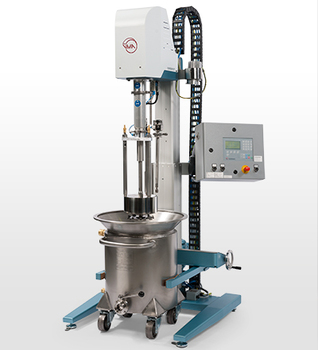

DISPERMAT® AE12 with the modular basket mill

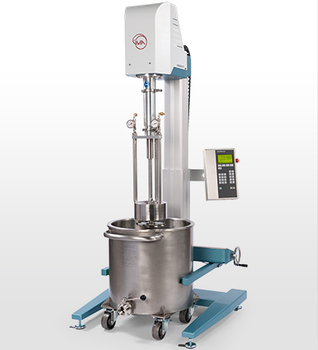

DISPERMAT® AE12-EX with the modular basket mill
| Basket mill TML |
Product volume litre |
Container capacity litre |
Recommended DISPERMAT® Dissolver type |
|---|---|---|---|
| Basket mill TML 05 |
0.25 - 0.4 | 0.5 | LC55 – LC110-12, LC220-12 │ CV-PLUS CN10 – CN20 │ CA │ AE01, AE03 – AE04 LC55-EX – LC75-EX │ AE01-EX, AE03-EX – AE04-EX |
| Basket mill TML 1 |
0.5 - 3 | 1, 2, 3, 5 | LC110-12 – LC220-6 │ CV4-PLUS CN10 – CN40 │ CA40 – CA60 AE02 – AE06 │ AE02-EX – AE06-EX |
| Basket mill TML 5 |
2.5 - 12 | 5, 7, 10, 15 | LC220-12 – LC220-6 │ CN20 – CN100 AE04 – AE12 │ AE04-EX – AE012-EX |
| Basket mill TML 10 |
3.5 - 25 | 7, 10, 20, 30 | CN60 – CN100 AE08 – AE12 │ AE08-EX – AE012-EX |
| Basket mill TML 50 |
15 - 50 | 30, 50, 70 | CN90 – CN100 │ AE11 – AE12 AE11-EX – AE012-EX |
The addition of the modular basket mill TML converts the DISPERMAT® dissolver into an extremely efficient grinding system. After the pre-dispersion is completed, the dissolver shaft can be replaced by the TML basket mill without the need for any tools.
The basket mill is available in the following designs:
Every basket mill TML can be modified for using smaller or larger milling beads at a later date. We would be pleased to advise you.
Basket mills are extremely efficient grinding systems comprising of a grinding basket that is lowered into the millbase for dispersion. During operation the grinding basket stands still while the milling shaft to which the milling tool, dissolver disc and pump wheel are fastened, rotates. The rotating milling tool agitates the beads inside the basket which disperses the millbase. The dissolver disc at the tip of the shaft and the pumping wheel generate effective circulation of the millbase, helping to provide excellent dispersion results in a short period of time. The TML basket milling system includes a special adapter flange which enables it to be fitted to a DISPERMAT® without the need for any tools. If the standard dissolver shaft and the TML basket milling system are frequently interchanged, an additional DL dissolver shaft is recommended

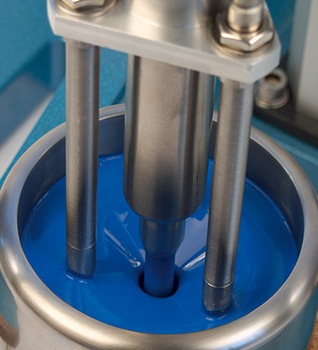

The double walled grinding basket filled with beads is lowered into the millbase.
Intense circulation of the product is generated with the dissolver disc and integrated pump wheel. For assessment of the milling process – during dispersion – a product sample can be taken at any time.
When the milling process is complete, the grinding basket is raised. Product residue in the grinding basket is centrifuged out by briefly running the milling and the dissolver discs.
Cleaning the milling system is carried out with a suitable cleaning fluid in a separate container.
