Vacuum dissolver DISPERMAT® VL

Dispersion under vacuum with single‒ and double walled vacuum containers Optional: explosion proofness, scraper system

DISPERMAT®
type		 Power
kW		 Speed
rpm		 Torque
Nm		 Product volume
litre
Vacuum dissolver DISPERMAT® VL1 2.2 0 ‒ 6000 7.4 0.3 ‒ 0.7
Vacuum dissolver DISPERMAT® VL2 2.2 0 ‒ 6000 7.4 0.5 ‒ 1.5
Vacuum dissolver DISPERMAT® VL3 2.2 0 ‒ 6000 7.4 0.8 ‒ 2.2
Vacuum dissolver DISPERMAT® VL5 2.2 0 ‒ 6000 7.4 1.5 ‒ 4
Vacuum dissolver DISPERMAT® VL10 4 0 ‒ 6000 13.7 4 ‒ 7
Vacuum dissolver DISPERMAT® VL15 4 0 ‒ 6000 13.7 5 ‒ 12
Vacuum dissolver DISPERMAT® VL25 4 0 ‒ 3000 27 10 ‒ 20
Vacuum dissolver DISPERMAT® VL45 4 0 ‒ 3000 27 15 ‒ 35
Vacuum dissolver DISPERMAT® VL60 4 0 ‒ 3000 27 20 ‒ 40
Vacuum dissolver DISPERMAT® VL75 5,5 0 ‒ 3000 37 30 ‒ 60
Vacuum dissolver DISPERMAT® VL100 7,5 0 ‒ 3000 50 40 ‒ 80

Vacuum dissolver with height adjustment of the dissolver disc even during vacuum operation.

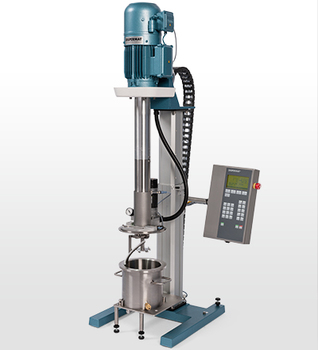

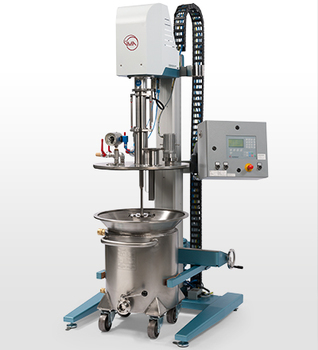

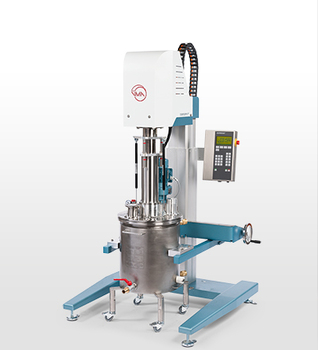

The DISPERMAT® VL is a vacuum dissolver for laboratory and pilot plant operation. It is ideal for R&D work as well as for production of larger batches. The DISPERMAT® VL is very easy to use. The stand has an electric height adjustment; the vacuum container is securely mounted on the base plate by a quick release fixture. The height of the milling tool can be adjusted also during the dispersion process. The DISPERMAT® VL is also available in an explosion‒proof version according to ATEX.

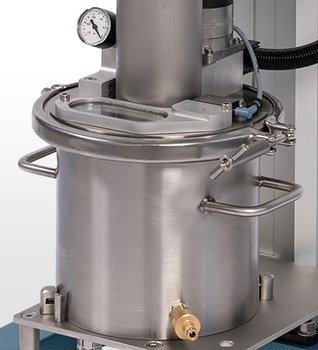

The single and double wall temperature controlled vacuum containers are made of stainless steel. A viewing glass, lamp, vacuum connection, filling opening and exhaust are all located in the stainless steel vacumm cover.

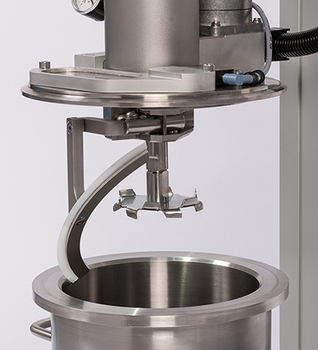

The DISPERMAT® VL is also available with an optional scraper system.



Summary of the most important features:

  • height adjustment of the dissolver disc even during vacuum operation
  • stand with electric height adjustment
  • double wall (temperature controlled) and single wall vacuum containers made of stainless steel
  • vacuum cover with viewing glass, LED illumination, filling opening
  • options: explosion proof (ATEX), scraper system

C and C-EX ‒ technology

The DISPERMAT® dissolver is fitted with the CV - technology
  • Graphic display with indication of speed, torque, power, product temperature, timer, periphical speed and height of the dispersing tool
  • Data recording with graphical indication
  • Switch‒off function for parameters as temperature, speed, power, etc.
  • 100 individual PRESET configurations
  • Data interface to WINDISP 7© Software

M-EX ‒ technology

The DISPERMAT® dissolver is fitted with the CV - technology
  • Variable speed adjustment
  • Digital speed indication
  • Explosion‒proof according to ATEX
  • Electric height adjustment

Accessories for the vacuum dissolver DISPERMAT® VL

Dispersion containers and dissolver discs

Dissolver

Dispersion containers

Dissolver discs

Dissolver DISPERMAT® VL1 1 litre Ø = 50 ‒ 70 mm
Dissolver DISPERMAT® VL2 2 litres Ø = 50 ‒ 80 mm
Dissolver DISPERMAT® VL3 3 litres Ø = 60 ‒ 90 mm
Dissolver DISPERMAT® VL5 5 litres Ø = 70 ‒ 100 mm
Dissolver DISPERMAT® VL10 10 litres Ø = 80 ‒ 150 mm
Dissolver DISPERMAT® VL15 15 litres Ø = 80 ‒ 150 mm
Dissolver DISPERMAT® VL25 25 litres Ø = 90 ‒ 175 mm
Dissolver DISPERMAT® VL45 45 litres Ø = 90 ‒ 200 mm
Dissolver DISPERMAT® VL60 60 litres Ø = 90 ‒ 225 mm
Dissolver DISPERMAT® VL75 75 litres Ø = 200 ‒ 300 mm
Dissolver DISPERMAT® VL100 100 litres Ø = 225 ‒ 350 mm
Accessories for dissolvers Dispersion containers Dissolver discs
