Dissolver DISPERMAT® CV-PLUS

Versatile laboratory dissolver for stirring, dispersing, vacuum dispersing, homogenising and fine grinding.

Innovation made in Germany: The dissolver DISPERMAT® CV-PLUS can also be used with the modular dispersion and fine grinding systems as a vacuum dissolver, bead mill, basket mill, homogeniser and dissolver for high viscous products.

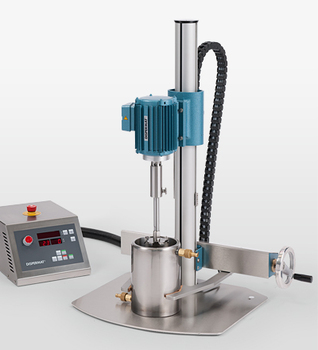

Dissolver DISPERMAT® CV3-Plus

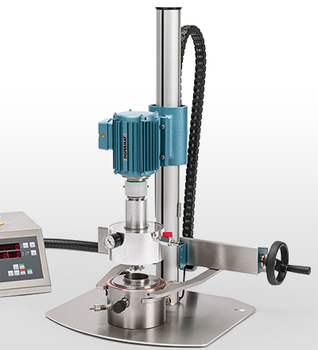

Ddissolver dispermat cv3 plus_cds

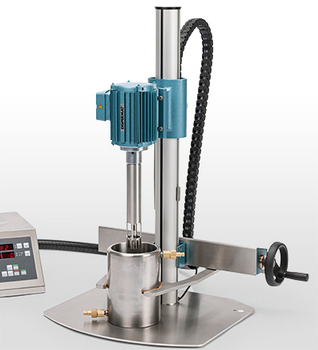

dissolver_dispermat_cv3-plus_sr

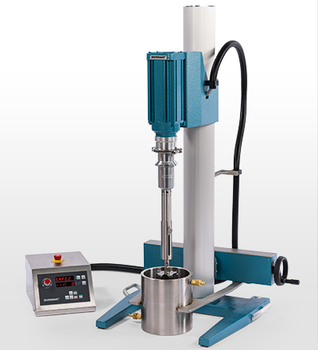

dissolver_cv4-plus.
The CV-controls are equipped with digital displays for speed, torque, time and product temperature.
DISPERMAT®
type
Power
kW
Speed
rpm
Torque
Nm
Product volume
litre
Dissolver DISPERMAT® CV3-PLUS 0.75 0 ‒ 20000 0.8 0.05 ‒ 5
Dissolver DISPERMAT® CV4-PLUS 1.5 0 ‒ 20000 1.5 0.125 ‒ 8

The established all‒rounder for the laboratory.
In a new design with electric height adjustment.

Due to the newly developed stand with electric height adjustment the DISPERMAT® CV3-PLUS is an exceptionally comfortable laboratory dissolver. With the high quality stainless steel control unit the DISPERMAT® CV3-PLUS combines design and functionality in a new way. With the modular accessory systems the DISPERMAT® CV3-PLUS dissolver is suitable for various stirring, dispersing and milling functions.

The sturdy central clamping system offers further comfort. With the clamping arms the dispersion container is centrally located and secured safely under the dissolver shaft. The integrated safety package in accordance with the machine directive 2006/42/EG provides reliable protection during the dispersing process.

High‒grade design, certified quality and durable technology characterise this all‒ rounder for the laboratory.

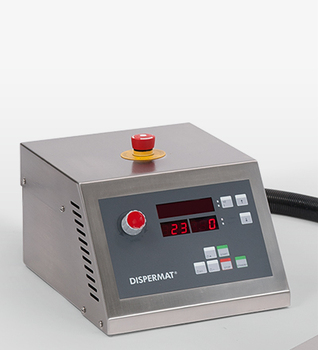

CV ‒ technology

The DISPERMAT® dissolver is fitted with the CV - technology
  • Electric height adjustment

    Control of the comfortable electric height adjustment of the drive motor via the plastic foil keyboard.
  • Safety device

    The functions of the safety device according to the machine directive 2006/42/EG are pre‒selected via the plastic foil keyboard and displayed digitally.
  • Digital indication

    Display for speed, torque, Timer, product temperature (PT100) and safety device.
  • Plastic foil keyboard

    The splash water protected and solvent resistant plastic foil keyboard allows for a particularly comfortable operation.
  • Speed adjustment

    Infinitely variable speed adjustment from 0 to 20000 rpm.
  • Timer

    Timer function with display of the pre‒selected time as well as the elapsed time. Timer controlled switch over to second speed.

Accessories for the dissolver DISPERMAT® CV-PLUS

Flexible. Powerful. Innovative.

Modular dispersion and fine grinding systems for DISPERMAT® dissolver.

The dissolver DISPERMAT® CV-PLUS can also be used with the modular dispersion and fine grinding systems as a vacuum dissolver, bead mill, basket mill, homogeniser and dissolver for high viscous products.

Bead mill APS Basket mill TML Vacuum dispersion system CDS Homogenizer SR Scraper system ASC

Dispersion containers and dissolver discs

Dissolver

Dispersion containers

Dissolver discs

Dissolver DISPERMAT® CV3-PLUS 0.125 ‒ 10 litres Ø = 20 ‒ 100 mm
Dissolver DISPERMAT® CV4-PLUS 0.125 ‒ 25 litres Ø = 20 ‒ 125 mm
