Milling impellers

In addition to our extensive range of stirring, dispersing and milling accessories, we produce varying designs on request.
Our experienced engineers are glad to advise you accordingly.

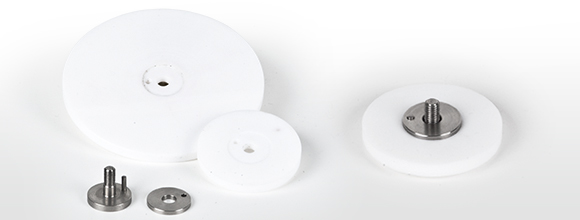

Teflon single milling impeller

Type	Ø	Height	Container capacity	Milling beads	Millbase quantity	Order number
EMS T20	20 mm	5 mm	30 ml	12 ml	8 - 12 ml	D01/003020
EMS T30	30 mm	5 mm	125 ml	50 ml	30 - 50 ml	D01/003030
EMS T45	45 mm	5 mm	250 ml	100 ml	50 - 100 ml	D01/003045
EMS T60	60 mm	5 mm	500 ml	200 ml	100 - 200 ml	D01/003060
EMS T75	75 mm	5 mm	1000 ml	400 ml	200 - 500 ml	D01/003075
EMS T90	90 mm	5 mm	2000 ml	800 ml	500 - 1500 ml	D01/003090
Fixing device for all teflon impeller discs						D01/003031

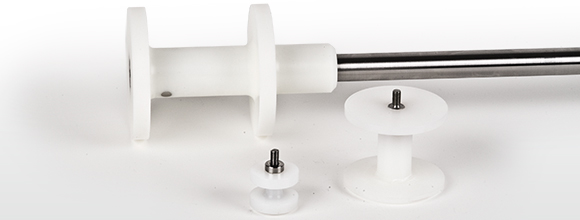

Polyamide double milling impeller

Type	Ø	Height	Container capacity	Milling beads	Millbase quantity	Order number
DMS 28	28 mm	22 mm	50 ml	20 ml	10 - 20 ml	D01/006028
DMS 32	32 mm	30 mm	125 ml	50 ml	30 - 50 ml	D01/006032
DMS 45	45 mm	38 mm	250 ml	100 ml	50 - 100 ml	D01/006045
DMS 60	60 mm	50 mm	500 ml	200 ml	100 - 200 ml	D01/006060
DMS 70	70 mm	85 mm	1000 ml	400 ml	200 - 400 ml	D01/006070
for dispersion shafts Ø = 17 mm
DMS 80	80 mm	85 mm	2000 ml	800 ml	500 - 1500 ml	D01/006080-17
DMS 100	100 mm	95 mm	3000 ml	1200 ml	500 - 1500 ml	D01/006100-17
DMS 130	130 mm	98 mm	5000 ml	2000 ml	1500 - 2000 ml	D01/006130-17
for dispersion shafts Ø = 20 mm
DMS 80	80 mm	85 mm	2000 ml	800 ml	500 - 1500 ml	D01/006080-20
DMS 100	100 mm	95 mm	3000 ml	1200 ml	500 - 1500 ml	D01/006100-20
DMS 130	130 mm	98 mm	5000 ml	2000 ml	1500 - 2000 ml	D01/006130-20
DMS 150	150 mm	105 mm	7000 ml	2800 ml	2000 - 3500 ml	D01/006150-20

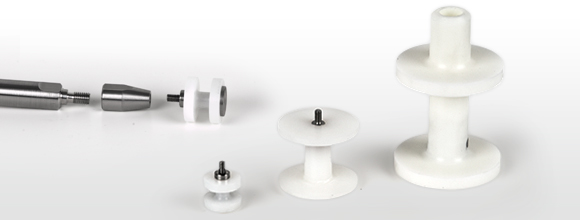

Ceramic double milling impeller

Type	Ø	Height	Container capacity	Milling beads	Millbase quantity	Order number
DMK 32	32 mm	30 mm	125 ml	50 ml	30 - 50 ml	D10/APS125RZ
DMK 45	45 mm	38 mm	250 ml	100 ml	50 - 100 ml	D11/APS250RZ
DMK 60	60 mm	50 mm	500 ml	200 ml	100 - 200 ml	D11/APS500RZ
DMK 70	70 mm	85 mm	1000 ml	400 ml	200 - 500 ml	D11/APS1000RZ
DMK 100	100 mm	95 mm	3000 ml	1200 ml	500 - 1500 ml	D11/APS3000RZ
