Explosion proof dissolver DISPERMAT® LC-EX

Innovation made in Germany: The dissolver DISPERMAT® LC-EX can also be used with the modular dispersion and fine grinding systems as a vacuum dissolver, bead mill, basket mill and homogeniser.

DISPERMAT® type	Power kW	Speed rpm	Torque Nm	Product volume litre
Dissolver DISPERMAT® LC25-EX	0.25	0 ‒ 12000	0.4	0.25 ‒ 1
Dissolver DISPERMAT® LC55-EX	0.55	0 ‒ 12000	0.9	0.25 ‒ 3
Dissolver DISPERMAT® LC75-EX	0.75	0 ‒ 12000	1.2	0.25 ‒ 5

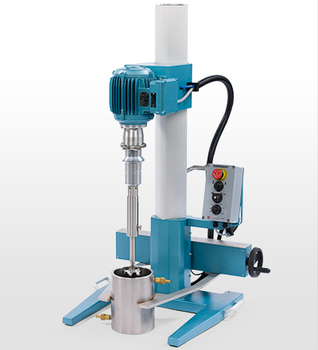

Explosion proof laboratory dissolver for zone 2 with electric height adjustment for product quantities up to 5 litre

The DISPERMAT® LC-EX dissolvers are designed specifically for laboratory dispersion work in hazardous areas where ATEX approved machines are required.

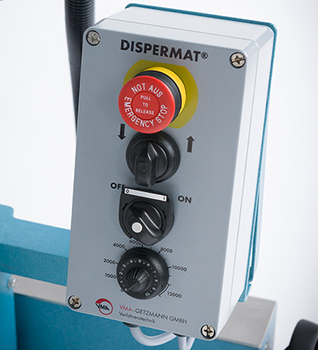

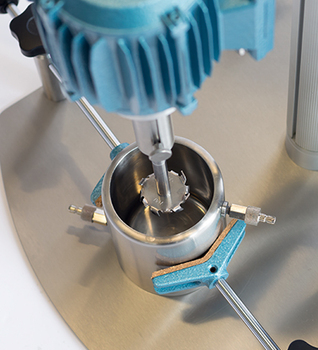

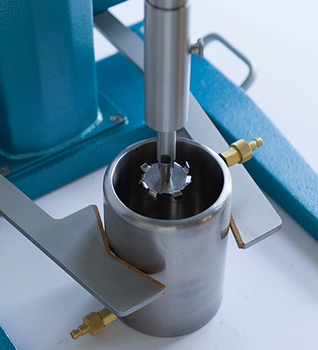

The new competitive models DISPERMAT® LC-EX are explosion proof laboratory dissolvers according to explosion class Zone 2, II3 IIB T3. The instruments have integrated control panels and contain all essential explosion proof controls for easy operation of the unit: ON/OFF switch, potentiometer for an infinitely speed adjustment and a switch for operating the electric height adjustment. Due to the integrated explosion proof safety device consisting of the container clamping system (LC25-EX: container clamping system), the working height monitoring of the dispersion tool and the shaft protection pipe, a safe and comfortable work with the laboratory dissolvers DISPERMAT® LC25-EX, LC55-EX and LC75-EX is assured.

The separate control cabinet with the power electronics is situated outside the hazardous area.

Accessories for the explosion proof dissolver DISPERMAT^® LC-EX

Flexible. Powerful. Innovative.

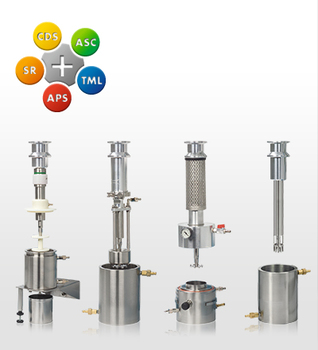

Modular dispersion and fine grinding systems for DISPERMAT® dissolver.

The dissolver DISPERMAT® LC-EX can also be used with the modular dispersion and fine grinding systems as a vacuum dissolver, bead mill, basket mill and homogeniser.

Bead mill APS		Basket mill TML		Vacuum system CDS		Homogenizer SR

Dispersion containers and dissolver discs

Dissolver		Dispersion containers		Dissolver discs
Dissolver DISPERMAT® LC30		0.125 - 10 litres		Ø = 20 - 80 mm
Dissolver DISPERMAT® LC55		0.125 - 10 litres		Ø = 20 - 100 mm
Dissolver DISPERMAT® LC75		0.125 - 10 litres		Ø = 20 - 100 mm
Dissolver DISPERMAT® LC110-12		0.125 - 25 litres		Ø = 30 - 150 mm
Dissolver DISPERMAT® LC110-6		0.125 - 25 litres		Ø = 60 - 150 mm
Dissolver DISPERMAT® LC220-12		0.125 - 25 litres		Ø = 30 - 175 mm
Dissolver DISPERMAT® LC220-6		0.125 - 25 litres		Ø = 60 - 175 mm
Dissolver		Dispersion containers		Dissolver discs
Dissolver DISPERMAT® LC25-EX		0.125 ‒ 10 litres		Ø = 20 ‒ 60 mm
Dissolver DISPERMAT® LC55-EX		0.5 ‒ 25 litres		Ø = 20 ‒ 80 mm
Dissolver DISPERMAT® LC75-EX		0.5 ‒ 25 litres		Ø = 20 ‒ 100 mm
Accessories for dissolvers		Dispersion containers		Dissolver discs
