Vacuum dissolver DISPERMAT® VE

Dispersion under vacuum with various containers in a vacuum chamber.
Optional: explosion proofness, scraper system

For every task the suitable process control. The vacuum dissolver DISPERMAT® VE is available with C, C-EX or M-EX control.

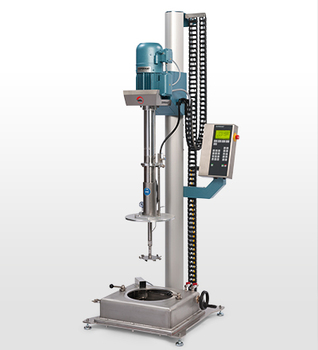

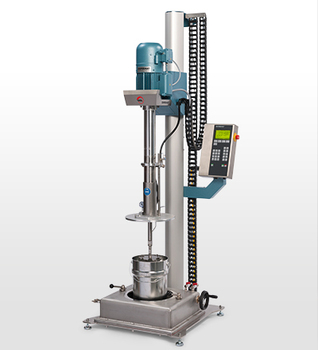

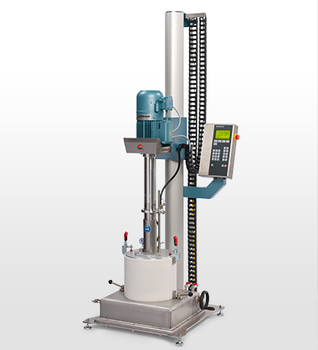

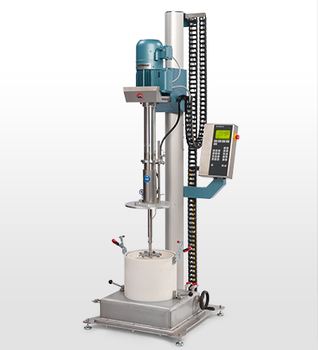

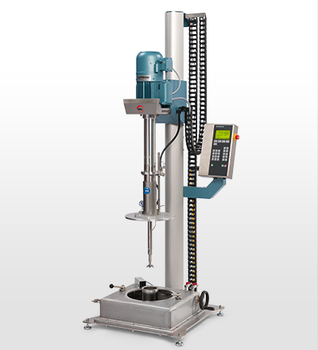

The DISPERMAT® VE is a special dissolver for laboratory use as well as for dispersing larger product quantities. This DISPERMAT® VE is unique due to the fact that vacuum operation can be executed with any container, not necessarily with a vacuum container.

The product containers can be single or double walled, it is also possible to use thin‒walled disposable containers. The height of the milling tool can be adjusted also during the dispersion process. The DISPERMAT® VE is also available in an explosion proof version according to ATEX.

C and C-EX ‒ technology

• Graphic display with indication of speed, torque, power, product temperature, timer, periphical speed and height of the dispersing tool
• Data recording with graphical indication
• Switch‒off function for parameters as temperature, speed, power, etc.
• 100 individual PRESET configurations
• Data interface to WINDISP 7© Software

M-EX ‒ technology

• Variable speed adjustment
• Digital speed indication
• Explosion‒proof according to ATEX
• Electric height adjustment

Accessories for the vacuum dissolver DISPERMAT^® VE

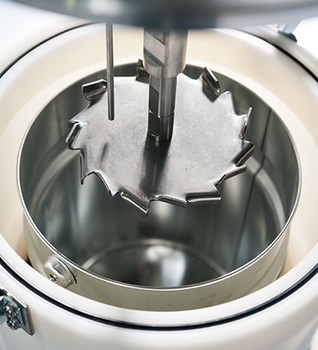

Scraper system for dispersing high viscosity substances

For highly viscous and non flowing substances, a scraper system can be added to the DISPERMAT® VE vacuum dissolver. The scraper arm can be changed very easily when changing the container.
