Modular rotor-stator dispersion system for DISPERMAT® dissolvers

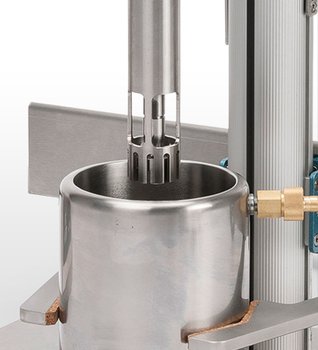

The rotor-stator mixer is adapted to a dissolver DISPERMAT® CV3-PLUS

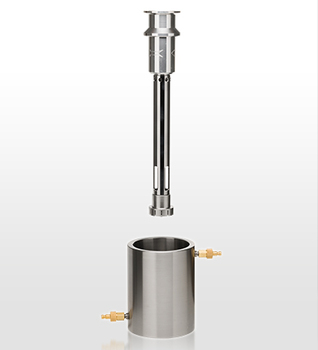

The SR rotor‒stator system is a dispersion system for batch processing low viscosity products.

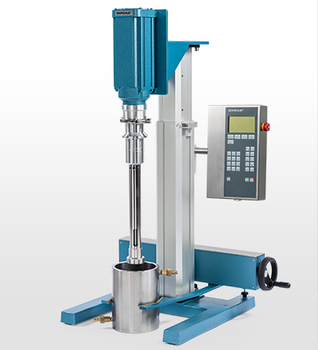

DISPERMAT® CV4-PLUS with Homogenizer SR

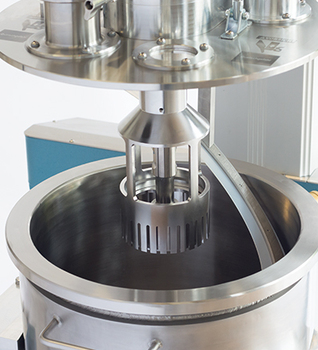

DISPERMAT® CN80 with the modular basket mill

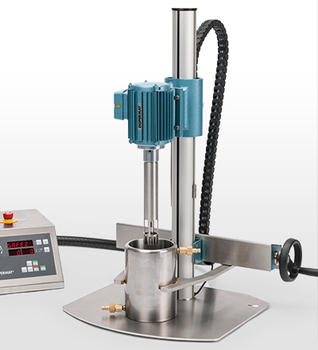

DISPERMAT® CA40 with C-control and adapted Rotor-Stator system SR.

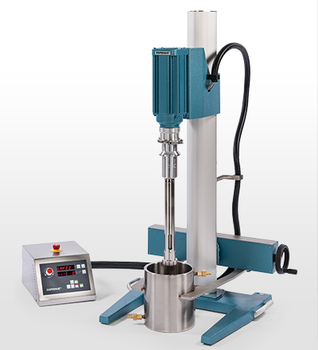

The rotor-stator mixer is adapted to a dissolver DISPERMAT® VL
| Homogenizer type |
Product volume litre |
Recommended DISPERMAT® Dissolver type |
|---|---|---|
| Homogenizer SR 06-01 | 0.1 - 5 | LC30 |
| Homogenizer SR 03-01 | 0.1 - 5 | LC55 – LC75 │ CV3-PLUS │ LC25-EX – LC55-EX |
| Homogenizer SR 04-01 | 0.1 - 10 | LC110-12 – LC220-6 │ CV4-PLUS │ CN10 – CN60 CA │ AE01 – AE06 │ LC75-EX │ AE01-EX – AE06-EX |
| Homogenizer SR 05-01 |
0.1 - 10 |
CN70 – CN80 │ AE07 – AE10 AE07-EX – AE10-EX |
The SR rotor‒stator system is a dispersion system for batch processing low viscosity products. The bearing free stator is an ideal flow breaker. It prevents rotation of the product and provides input of mechanical energy in a very concentrated area. The actual dispersion takes place between the rotor and the stator.
Besides the modular rotor-stator technology described above we are also able to provide a rotor-stator dispersion instrument which can be operated in circulation as well as in passage process.
Forward to Homogenizer DISPERMAT® AS »
