Explosion proof dissolver DISPERMAT® AE-EX

The all‒rounder for explosive areas up to zone 0 according to product directive 94/9/EG ATEX

Innovation made in Germany: The explosion proof dissolver DISPERMAT® AE-EX can also be used with the modular dispersion and fine grinding systems as a vacuum dissolver, bead mill, basket mill, homogeniser and dissolver for high viscous products.

DISPERMAT® type	Power kW	Speed rpm	Torque Nm	Product volume litre
Dissolver DISPERMAT® AE01-EX	0.55	0 ‒ 10000	1	0.25 ‒ 6
Dissolver DISPERMAT® AE02-EX	0.55	0 ‒ 6000	1.8	0.5 ‒ 7
Dissolver DISPERMAT® AE03-EX	1.1	0 ‒ 10000	2	0.25 ‒ 10
Dissolver DISPERMAT® AE04-EX	2.2	0 ‒ 10000	4	0.25 ‒ 15
Dissolver DISPERMAT® AE05-EX	1.1	0 ‒ 6000	3.7	0.5 ‒ 15
Dissolver DISPERMAT® AE06-EX	2.2	0 ‒ 6000	7.4	0.5 ‒ 20

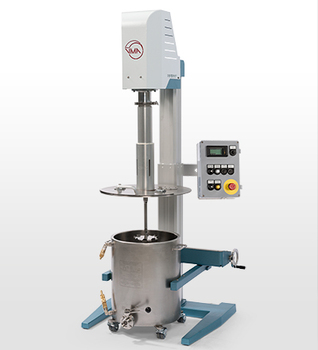

Dissolver DISPERMAT® AE07-EX	3	0 ‒ 6000	10	4 ‒ 30
Dissolver DISPERMAT® AE08-EX	4	0 ‒ 6000	13.7	4 ‒ 40
Dissolver DISPERMAT® AE09-EX	2.2	0 ‒ 3000	15	4 ‒ 45
Dissolver DISPERMAT® AE10-EX	4	0 ‒ 3000	26.5	4 ‒ 70

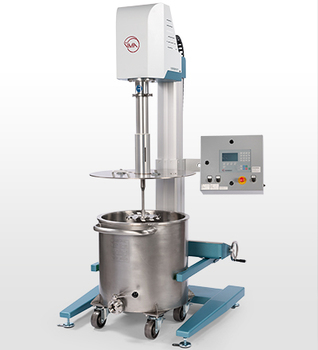

Dissolver DISPERMAT® AE11-EX	5.5	0 ‒ 3000	37	10 ‒ 120
Dissolver DISPERMAT® AE12-EX	7.5	0 ‒ 3000	50	10 ‒ 150

High‒grade design stands with powerful drives from 0.55 upto 7.5 kW

Premium design stands BK2 and BK3 with electric height adjustment are setting a new standard in the power range of 0.55 to 7.5 kW. Functional design and very robust engineering combined with the M-EX and C-EX control technologies makes the DISPERMAT® AE-EX to an all‒rounder in explosive areas.

These functional and robust stands are equipped with an integrated safety device and a high quality, wear resistant linear guides for electric height adjustment. The central clamping system is height adjustable.

The addition of the TML, CDS, APS or SR converts the DISPERMAT® AE-EX either into a basket mill, into a vacuum dissolver, into a closed batch bead mill or into a homogenizer. The ASC converts the DISPERMAT® AE-EX even into a dissolver for very high viscosity and non-flowing substances. Our experienced engineers are pleased to provide advice.

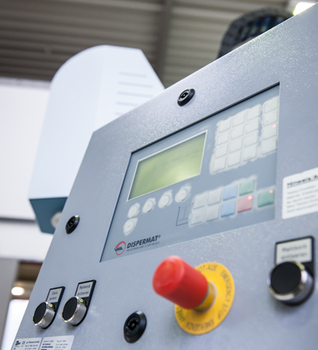

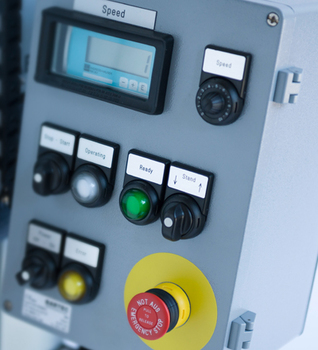

For every task the suitable process control. The dissolver DISPERMAT® AE-EX is available with C-EX or M-EX control.

Accessories for the explosion proof dissolver DISPERMAT^® AE-EX

Flexible. Powerful. Innovative.

Modular dispersion and fine grinding systems for DISPERMAT® dissolver.

The explosion proof dissolver DISPERMAT® AE-EX can also be used with the modular dispersion and fine grinding systems as a vacuum dissolver, bead mill, basket mill, homogeniser and dissolver for high viscous products.

Bead mill APS		Basket mill TML		Vacuum system CDS		Homogenizer SR		Scraper system ASC

Dispersion containers and dissolver discs

Bead mill APS		Basket mill TML		Vacuum system CDS		Homogenizer SR		Scraper system ASC
