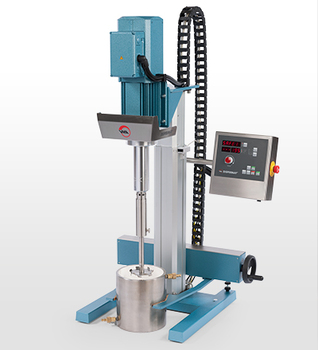

Dissolver DISPERMAT® CN

The all‒rounder with electric height adjustment for laboratory and pilot plant
up to 7.5 kW

Innovation made in Germany: The dissolver DISPERMAT® CN can also be used with the modular dispersion and fine grinding systems as a vacuum dissolver, bead mill, basket mill, homogeniser and dissolver for high viscous products.

Flexible. Powerful. Innovative. Modular Dispersing and Grinding Systems.
Ddissolver dispermat cv3 plus_cds
dissolver_dispermat_cv3-plus_sr
dissolver_cv4-plus.
DISPERMAT®
type
Power
kW
Speed
rpm
Torque
Nm
Product volume
litre
Dissolver DISPERMAT® CN10 1.1 0 ‒ 11000 1.8 0.25 ‒ 10
Dissolver DISPERMAT® CN20 2.2 0 ‒ 11000 3.6 0.25 ‒ 15
Dissolver DISPERMAT® CN30 1.1 0 ‒ 5500 3.6 0.5 ‒ 15
Dissolver DISPERMAT® CN40 2.2 0 ‒ 5500 7.2 0.5 ‒ 20
Dissolver DISPERMAT® CN50 3 0 ‒ 6000 10 4 ‒ 30
Dissolver DISPERMAT® CN60 4 0 ‒ 6000 13.7 4 ‒ 40
Dissolver DISPERMAT® CN70 2.2 0 ‒ 3000 15 4 ‒ 45
Dissolver DISPERMAT® CN80 4 0 ‒ 3000 26.5 4 ‒ 70
Dissolver DISPERMAT® CN90 5.5 0 ‒ 3000 37 10 ‒ 120
Dissolver DISPERMAT® CN100 7.5 0 ‒ 3000 50 10 ‒ 150

Laboratory and pilot plant dissolver with high torque and comfortable CN–technology

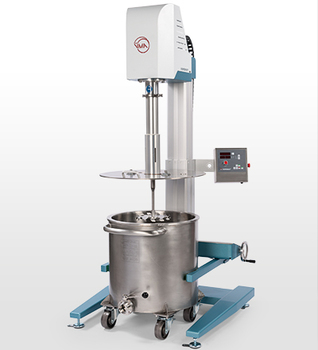

Due to its electric height adjustable stand the DISPERMAT® CN is an easy to use all-rounder for laboratory and pilot plant operation. The most powerful version with 7.5 kW motor is suitable even for small production applications.

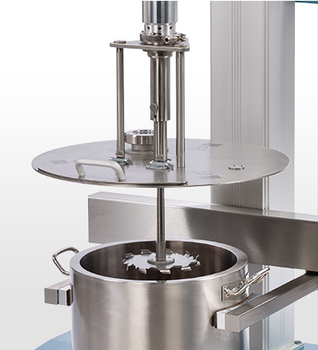

The compact and robust stands contain a safety device according to the EC machine directive 2006/42/EG as standard. The central container clamping system allows for a particularly simple handling. The container is placed between the clamping arms and it is centrally clamped in place.

Beside the standard control elements the userfriendly CN–technology includes a switchable, digital indication for speed and torque. Furthermore the dispersion time can be digitally preselected. The function of the safety device is also indicated digitally.

CV ‒ technology

The DISPERMAT® dissolver is fitted with the CV - technology
  • Variable speed adjustment
  • Digital display of speed, torque, timer and product temperature
  • Electric height adjustment
  • Control for the innovative height adjustment system (Ha, H1, H2)

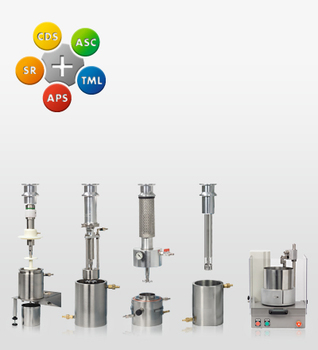

Accessories for the dissolver DISPERMAT® CN

Flexible. Powerful. Innovative.

Modular dispersion and fine grinding systems for DISPERMAT® dissolver.

The dissolver DISPERMAT® CN can also be used with the modular dispersion and fine grinding systems as a vacuum dissolver, bead mill, basket mill, homogeniser and dissolver for high viscous products.

Bead mill APS Basket mill TML Vacuum dispersion system CDS Homogenizer SR Scraper system ASC

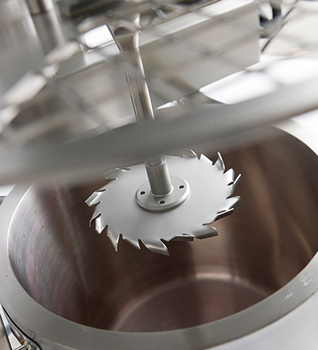

Dispersion containers and dissolver discs

Dissolver

Dispersion containers

Dissolver discs

Dissolver DISPERMAT® CN10 0.25 ‒ 25 litres Ø = 40 ‒ 125 mm
Dissolver DISPERMAT® CN20 0.25 ‒ 25 litres Ø = 40 ‒ 150 mm
Dissolver DISPERMAT® CN30 0.25 ‒ 25 litres Ø = 60 ‒ 150 mm
Dissolver DISPERMAT® CN40 0.25 ‒ 25 litres Ø = 60 ‒ 175 mm
Dissolver DISPERMAT® CN50 10 ‒ 100 litres Ø = 70 ‒ 250 mm
Dissolver DISPERMAT® CN60 10 ‒ 100 litres Ø = 70 ‒ 300 mm
Dissolver DISPERMAT® CN70 10 ‒ 100 litres Ø = 125 ‒ 300 mm
Dissolver DISPERMAT® CN80 10 ‒ 100 litres Ø = 125 ‒ 350 mm
Dissolver DISPERMAT® CN90 25 ‒ 250 litres Ø = 125 ‒ 400 mm
Dissolver DISPERMAT® CN100 25 ‒ 250 litres Ø = 125 ‒ 450 mm
