Dissolver DISPERMAT® CA

Quiet high‒power dissolver for repeatable dispersion results

Innovation made in Germany: The dissolver DISPERMAT® CA can also be used with the modular dispersion and fine grinding systems as a vacuum dissolver, bead mill, basket mill, homogeniser and dissolver for high viscous products.

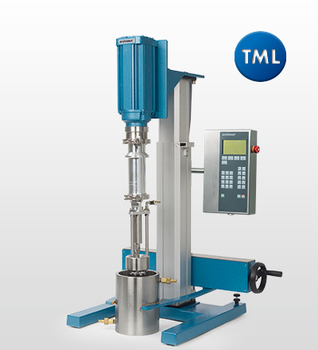

DISPERMAT® CA 40 with C-control and adapted basket mill TML.

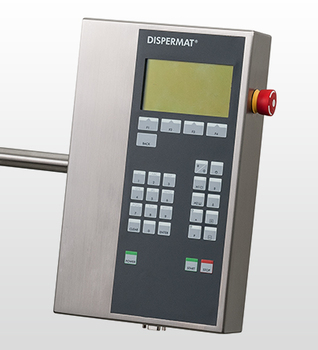

C ‒ technology

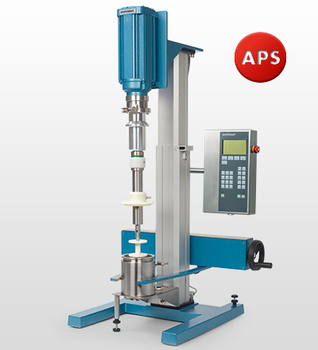

DISPERMAT® CA 40 with C-control and adapted milling system APS.
DISPRMAT® CA 40 with C-control and adaptable vacuum system CDS

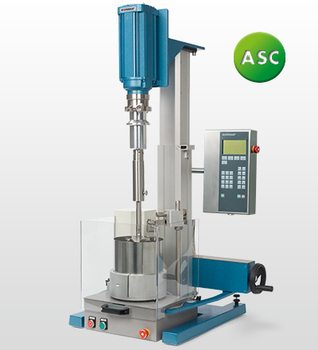

DISPERMAT® CA 40 with C-control and the modular scraper system ASC.
DISPERMAT®
type		 Power
kW		 Speed
rpm		 Torque
Nm		 Product volume
litre
Dissolver DISPERMAT® CA20 0.55 0 ‒ 20000 0.5 0.05 ‒ 3
Dissolver DISPERMAT® CA40 1.5 0 ‒ 20000 1.5 0.05 ‒ 8
Dissolver DISPERMAT® CA60 2.5 0 ‒ 20000 2.5 0.05 ‒ 12

High-speed dissolver for all modular accessory systems

The DISPERMAT® CA is a compact dispersion instrument with a very userfriendly operation due to its electric height adjustment. The motor is almost silent due to conductive cooling from the motor housing. The fast running motor has high torque even in the lower speed range. The DISPERMAT® CA instruments are equipped with a safety device as standard.


WINDISP 7©

For permanent storage of the experimental date the PC‒Software WINDISP 7© is available. Via a bidirectional interface not only the control data can be stored but also additional information such as dispersion temperation can be carried out. Further functions like data export, comparison of two dispersion curves, marker, data base and so on enable an effective development.

CV ‒ technology

The DISPERMAT® dissolver is fitted with the CV - technology

  • Data recording

    recording of the process parameters with graphical indication

  • Switch‒off parameters

    Switch‒off function for temperature, speed, torque and power

  • Database

    100 individual PRESET configurations for H1, H2, speed, timer, switch‒off parameters etc.

  • Power compensation

    calibration of the net power

  • Height measurement

    adjustable working range for different container sizes

  • WINDISP 7©

    Data interface to WINDISP 7© software for documentation, analyses, research and development and quality control

  • Graphic display

    indications of speed, torque, power, product temperature, timer , peripheral speed and height of the dispersing tool

  • Repeatability

    dispersion method: constant speed and constant power input for an optimum repeatability

Accessories for the dissolver DISPERMAT® CA

Flexible. Powerful. Innovative.

Modular dispersion and fine grinding systems for DISPERMAT® dissolver.

The dissolver DISPERMAT® CA can also be used with the modular dispersion and fine grinding systems as a vacuum dissolver, bead mill, basket mill, homogeniser and dissolver for high viscous products.

Bead mill APS Basket mill TML Vacuum dispersion system CDS Homogenizer SR Scraper system ASC
Bead mill APS Basket mill TML Vacuum system CDS Homogenizer SR Scraper system ASC

Dispersion containers and dissolver discs

Dissolver

Dispersion containers

Dissolver discs

Dissolver DISPERMAT® CA20 0.125 ‒ 25 litres Ø = 20 ‒ 80 mm
Dissolver DISPERMAT® CA40 0.125 ‒ 25 litres Ø = 20 ‒ 125 mm
Dissolver DISPERMAT® CA60 0.125 ‒ 25 litres Ø = 20 ‒ 150 mm
Accessories for dissolvers Dispersion containers Dissolver discs
