Dissolver DISPERMAT® LC

The new economy class upto 2.2 kW

Innovation made in Germany: The dissolver DISPERMAT® LC can be converted into a bead mill, basket mill, vacuum dissolver, homogenizer and dissolver for high viscose products by using the adaptable dispersion and milling systems.

DISPERMAT® type	Power kW	Speed rpm	Torque Nm	Product volume litre
Dissolver DISPERMAT® LC30	0.3	0 ‒ 20000	0.4	0.05 ‒ 1
Dissolver DISPERMAT® LC55	0.55	0 ‒ 20000	0.6	0.05 ‒ 3
Dissolver DISPERMAT® LC75	0.75	0 ‒ 20000	0.8	0.05 ‒ 5
Dissolver DISPERMAT® LC110-12	1.1	0 ‒ 12000	1.8	0.25 ‒ 10
Dissolver DISPERMAT® LC110-6	1.1	0 ‒ 6000	3.6	0.5 ‒ 15
Dissolver DISPERMAT® LC220-12	2.2	0 ‒ 12000	3.6	0.25 ‒ 15
Dissolver DISPERMAT® LC220-6	2.2	0 ‒ 6000	7.2	0.5 ‒ 20

Dissolver for dispersing and fine grinding with extensive accessories.

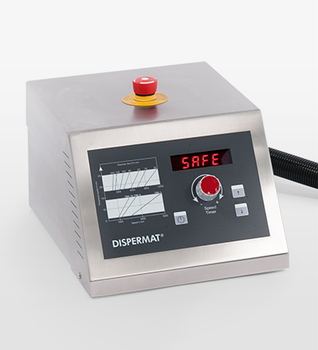

The DISPERMAT® LC is an universal laboratory and pilot plant dissolver which is characterised by its wide power range, making it suitable for small as well as larger product quantities. The newly designed control panel with a stainless steel housing, plastic foil keyboard and with a digital speed indication and an user friendly timer function with digital indication of the pre adjusted as well as the elapsed dispersion time. The quiet high quality motor allows for quiet running even at a high speed. Starting with the DISPERMAT® LC55 the dissolvers are fitted with a safety device in accordance with the machine directive 2006/42/EG providing highest safety at the workplace. According to the application the DISPERMAT® LC dissolver can be converted into a bead mill, basket mill, vacuum dissolver, homogenizer and dissolver for high viscose products with the adaptable dispersion and milling systems.

The DISPERMAT® LC dissolvers are economic entry-level dissolvers with a high performance range in the proven VMA‒ GETZMANN quality.

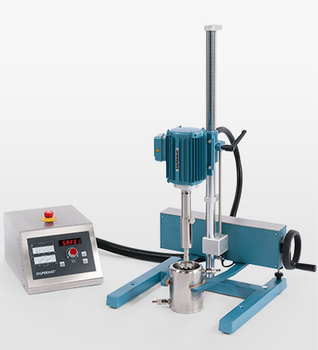

DISPERMAT® LC30 - LC75 Dissolvers

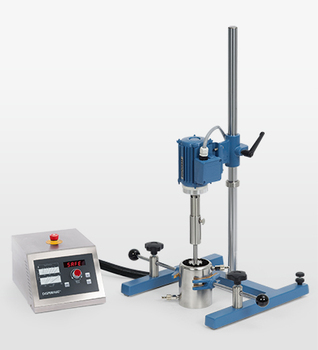

The DISPERMAT® LC30 - LC75 dissolvers are particularly powerfull and economic entry-level dissolvers for dispersing, homgenizing, stirring, emulsifying, suspending and fine grinding purposes in the laboratory. The adaptive turn sensitive speed control is used to adjust the motor speed from 0 to 20000 rpm. The speed is shown in a clear digital display. The DISPERMAT® LC30 dissolver is fitted with easy to use clamping arms. Starting with the DISPERMAT® LC55 the LC dissolvers are fitted central ZBS clamping device which automatically postions the container centrally and securely directly underneath the motor. The polished stand rods ensure that the manual height adjustment is simple and very smooth to operate . The quiet running motors used for the LC30 - LC75 aboratory dissolvers do not require separate ventilation as any heat generated during operation is dissipated safely via the surface of the motor housing. This guarantees that the motors run very quitely even at high speed.

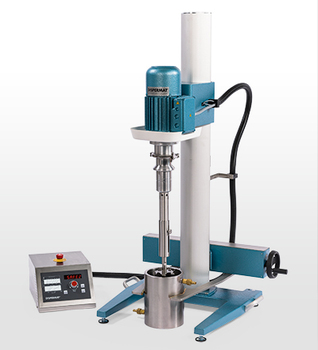

DISPERMAT® LC110 - LC220 dissolvers are now available with electric height adjustment

The powerful laboratory and pilot plant DISPERMAT® LC110 - LC220 dissolvers are now fitted with electric height adjustment. The high quality operator control panel within an ergonomic stainless steel housing can be placed in a convenient position next to the dissolver.

Accessories for the dissolver DISPERMAT^® LC

Flexible. Powerful. Innovative.

Modular dispersion and fine grinding systems for DISPERMAT® dissolver.

The dissolver DISPERMAT® LC can also be used with the modular dispersion and fine grinding systems as a vacuum dissolver, bead mill, basket mill, homogeniser and dissolver for high viscous products.

Bead mill APS		Basket mill TML		Vacuum system CDS		Homogenizer SR		Scraper system ASC

Dispersion containers and dissolver discs

Dissolver		Dispersion containers		Dissolver discs
Dissolver DISPERMAT® LC30		0.125 - 10 litres		Ø = 20 - 80 mm
Dissolver DISPERMAT® LC55		0.125 - 10 litres		Ø = 20 - 100 mm
Dissolver DISPERMAT® LC75		0.125 - 10 litres		Ø = 20 - 100 mm
Dissolver DISPERMAT® LC110-12		0.125 - 25 litres		Ø = 30 - 150 mm
Dissolver DISPERMAT® LC110-6		0.125 - 25 litres		Ø = 60 - 150 mm
Dissolver DISPERMAT® LC220-12		0.125 - 25 litres		Ø = 30 - 175 mm
Dissolver DISPERMAT® LC220-6		0.125 - 25 litres		Ø = 60 - 175 mm
Accessories for dissolvers		Dispersion containers		Dissolver discs
