Bead mill APS

Modular milling system for DISPERMAT® dissolver available in vacuum, pressure, ceramic and nano version.

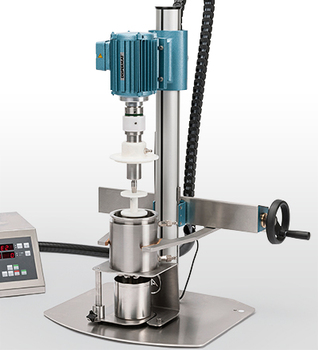

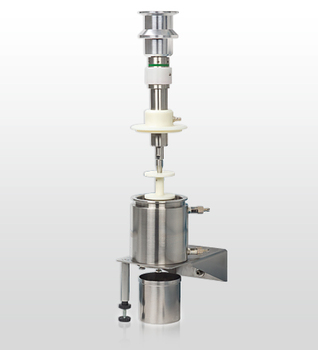

When combined with the modular APS Milling System and a suitable impeller a DISPERMAT® laboratory dissolver is converted into a closed, batch bead mill.

The milling system APS is suitable for product quantities between 12 and 3000 ml. For larger product quantities we recommend the basket mill TML.

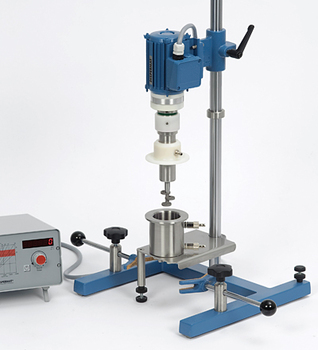

DISPERMAT® LC30 as batch - bead mill with modular milling system APS.

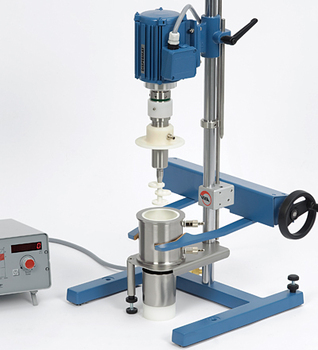

DISPERMAT® LC55 with the modular bead mill in ceramic design. Options: nano, pressure and vacuum version.

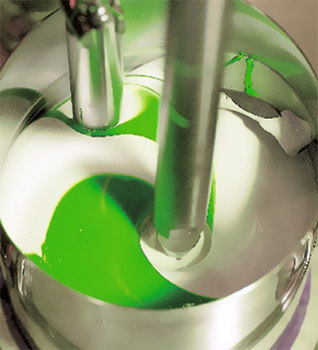

The scraper arm is pressed against the inner wall of the container by spring pressure – also high viscous products are conveyed over and over again towards the container bottom.

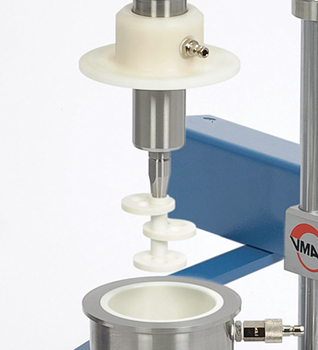

Milling impeller, sieve and container are available in SiSiC and ZrO2.

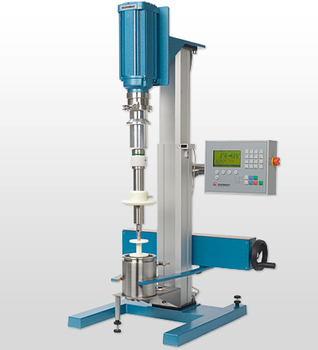

DISPERMAT® CA with modular bead mill APS in nano design for application of smallest beads from 0,1 mm.

Bead mill type	Product volume, ml	Container capacity, ml	Recommended DISPERMAT® Dissolver type
Bead mill APS 30	8 - 12	30	LC30 – LC110-12 │ CV-PLUS │ CN10 – CN20 │ CA AE01 │ LC-EX │ AE01-EX
Bead mill APS 50	10 - 20	50	LC30 – LC110-12 │ CV-PLUS │ CN10 – CN20 │ CA AE01 │ LC-EX │ AE01-EX
Bead mill APS 125	30 - 50	125	LC30 – LC220-6 │ CV-PLUS │ CN10 – CN40 │ CA AE01 – AE06 │ LC-EX │ AE01-EX – AE06-EX
Bead mill APS 250	50 - 100	250	LC30 – LC220-6 │ CV-PLUS │ CN10 – CN40 │ CA AE01 – AE06 │ LC-EX │ AE01-EX – AE06-EX
Bead mill APS 500	100 - 200	500	LC55 – LC220-6 │ CV-PLUS │ CN10 – CN60 │ CA AE01 – AE08 │ LC55-EX – LC75-EX │ AE01-EX – AE08-EX
Bead mill APS 1000	200 - 500	1000	LC75 – LC220-6 │ CV-PLUS │ CN10 – CN80 │ CA40 – CA60 AE01 – AE10 │ LC75-EX │ AE01-EX – AE10-EX
Bead mill APS 3000	500 - 1500	3000	LC220-12 – LC220-6 │ CN20, CN40 – CN100 AE04, AE06 – AE12 │ AE04-EX, AE06-EX – AE12-EX
Bead mill APS 5000	1500 - 2000	5000	CN50 – CN100 AE06 – AE12 │ AE06-EX – AE12-EX
Bead mill APS 7000	2000 - 3500	7000	CN80 – CN100 │ AE10 – AE12 AE10-EX – AE12-EX

The closed vertical bead mill is available as follows:

Bead mill APS: Basic version for 0,5 mm milling beads. Also available in vacuum, pressure, ceramic and nano version.
Bead mill APS nano: Version for extremely small beads from 0,1 mm to 1 mm. Also available in vacuum, pressure and ceramic version .
Bead mill APS ceramic: Milling impeller, sieve and the insert part of the container are available in SiSiC or ZrO2. Also available in vacuum, pressure and nano version.
Bead mill APS vacuum: Fine grinding in a completely closed system under vacuum. Also available in ceramic and nano version.
Bead mill APS pressure: Modular bead mill designed for pressurized operation. Also available in ceramic and nano version.

Dispersing and fine grinding combined in one single instrument

In combination with a milling system APS the laboratory dissolver DISPERMAT® changes into a closed, discontinuously operating bead mill. The system is easily adapted to the corresponding dissolver via the dissolver shaft or the adapter flange. The DISPERMAT® can be used as a dissolver as well as a bead mill.

The milling process with closed vertical bead mill APS:

The Milling System APS can easily be fitted to the DISPERMAT® laboratory dissolver. It is filled with the appropriate quantity of millbase. The milling toll is lowered.

The milling beads are introduced whilst the milling slowly rotates.

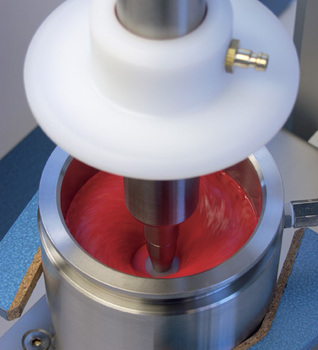

The sliding cover is lowered to seal the milling container. The millbase is then dispersed. The cover can be easily raised for taking samples during the dispersion process.

On completion of the dispersion process, the sieve sealing plug is removed and the milling container is discharged with assistance of compressed air.

Advantages of modular milling systems APS:

Closed, easy to use milling systems,
Simple and secure handling,
High material yield due to pneumatic press-out-system,
Double walled milling container for cooling or heating,
Cooling liquid is contained by self-sealing quick couplers,
Mill base separation from bead charge by a sieve, integrated in the base of the container,
Sealing of sieve by simple plug system,
Interchangeable milling tool

Closed vertical bead mill – environment-friendly and efficient milling technology

Dispersion in a closed system,
Low energy consumption,
Very easy to clean,
Fast change of grinding stock

Accessories for the bead mill APS

Milling tools and milling beads

Bead mill	Milling tools	Milling beads
Bead mill APS 30	EMS T20	12 ml
Bead mill APS 50	DMS 28	20 ml
Bead mill APS 125	EMS T30, MICRO, DMS 32	50 ml
Bead mill APS 250	EMS T45, MINI, DMS 45	100 ml
Bead mill APS 500	EMS T60, MC 25, DMS 60	200 ml
Bead mill APS 1000	EMS T75, DMS 70	400 ml
Bead mill APS 3000	EMS T90, DMS 100	1200 ml
Bead mill APS 5000	DMS 130	2000 ml
Bead mill APS 7000	DMS 150	2800 ml

Pearl mill units	Milling impellers	Milling beads
