Containers

Single- and double-walled stainless steel containers

In addition to our extensive range of stirring, dispersing and milling accessories, we produce varying designs on request. Our experienced engineers are glad to advise you accordingly.

Single‒walled containers

Single‒walled containers are suitable for many laboratory and pilot plant applications. The sturdy single‒walled containers are available in different designs.

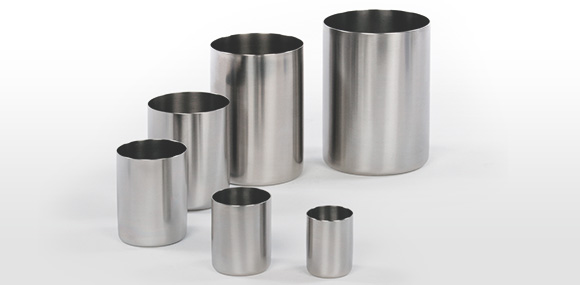

Single‒walled stainless steel containers

Container volume	Internal diameter	Internal height	Part number
Container 125 ml	50 mm	70 mm	D03/000125
Container 250 ml	65 mm	85 mm	D03/000250
Container 500 ml	80 mm	110 mm	D03/000500
Container 1000 ml	100 mm	130 mm	D03/001000
Container 2000 ml	120 mm	180 mm	D03/002000
Container 3000 ml	140 mm	200 mm	D03/003000
Container 5000 ml	180 mm	200 mm	D03/005000

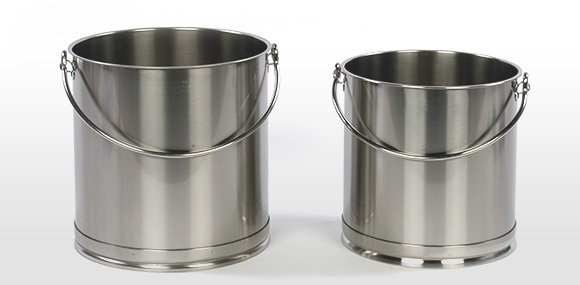

Single‒walled stainless steel containers with carrying handle

Container volume	Internal diameter	Internal height	Part number
Container 10 litre	24 cm	26 cm	D03/0C0010
Container 15 litre	27 cm	30 cm	D03/0C0015

Single‒walled stainless steel containers with carrying handles

Container volume	Internal diameter	Internal height	Part number
Container 20 litre	27 cm	37.5 cm	D03/0C0020
Container 25 litre	30 cm	37.5 cm	D03/0C0025
Container 30 litre	30 cm	44 cm	D03/0C0030
Container 50 litre	34 cm	55 cm	D03/0C0050

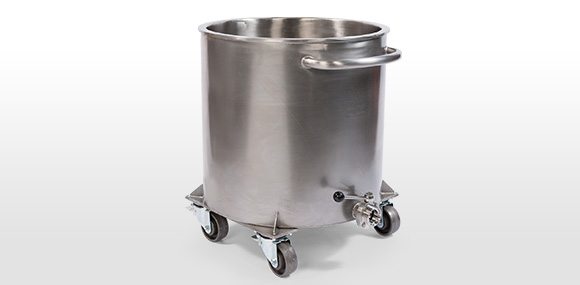

Single‒walled, stainless steel containers with carrying handles and a drain opening (industrial design)

The 10 to 50 litre containers have a drain opening which can be equipped with a ball valve or a flap valve. In addition, the dispersion containers can be delivered with wheels, and a two‒part cover. Please specify the desired options in your inquiry.

Container volume	Internal diameter	Height without wheels	Height incl. wheels
Container 10 litre	22 cm	26.5 cm	34.5 cm
Container 15 litre	25.5 cm	30.5 cm	38.5 cm
Container 20 litre	28 cm	33.5 cm	41.5 cm
Container 25 litre	30 cm	36 cm	44 cm
Container 35 litre	33.5 cm	40 cm	48 cm
Container 50 litre	38 cm	45 cm	53 cm

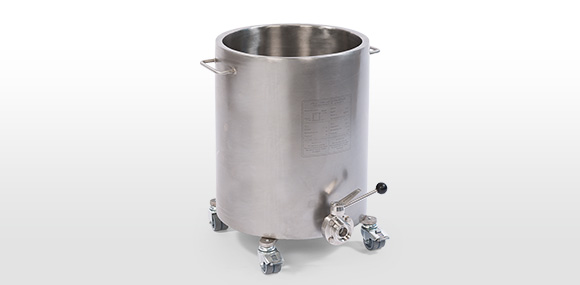

Single‒walled, stainless steel containers with handles, wheels and ball valve (industrial design)

The large single‒walled containers of 75 to 250 litres have an optional ball valve. The smooth running wheels and their practical handles make the handling especially simple.

Container volume	Internal diameter	Height incl. wheels	Part number
Container 75 litre	44.2 cm	69 cm	SK-EB-0075
Container 100 litre	49.2 cm	71.9 cm	SK-EB-0100
Container 150 litre	59.2 cm	77 cm	SK-EB-0150
Container 200 litre	64.2 cm	81 cm	SK-EB-0200
Container 250 litre	69.2 cm	87 cm	SK-EB-0250

Double‒walled containers

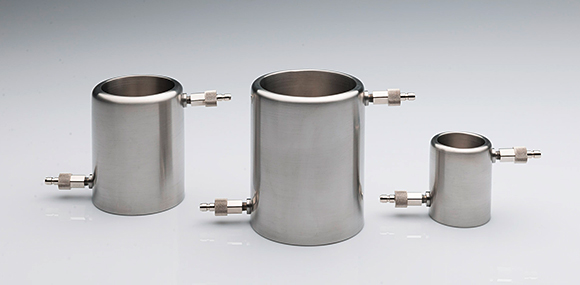

Double‒walled stainless steel containers, with an optional two‒part cover

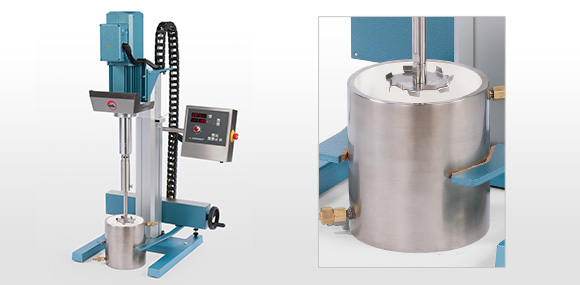

In the laboratory and pilot plant it is often necessary to process material at defined temperatures; for example during dispersing, stirring and exothermic reactions it is often preferable to remove excess heat. Other applications may require heat to be added. The high quality double wall temperature control containers are ideally suited for these and other applications. They are available in many sizes and models. The stainless steel containers can be cleaned very easily due to their polished surface. The containers up to 5000 ml have self‒sealing quick connect/ disconnect fittings guaranteeing easy handling and time saving cleaning. Self‒sealing valves on the coupling and hose prevent leakage.

Stainless steel covers or split covers are available for all containers.

Container volume	Internal diameter	Internal height	Part number
Container 30 ml	30 mm	40 mm	D20/000030
Container 50 ml	40 mm	50 mm	D20/000050
Container 125 ml	50 mm	70 mm	D20/000125
Container 250 ml	65 mm	85 mm	D20/000250
Container 500 ml	80 mm	110 mm	D20/000500
Container 1 litre	10 cm	13 cm	D20/001000
Container 2 litre	12 cm	18 cm	D20/002000
Container 3 litre	14 cm	20 cm	D20/003000
Container 5 litre	18 cm	20 cm	D20/005000

Two‒part covers for double‒walled temperature-control containers of stainless steel		Part number
	for 125 ml containers	D21/000125
	for 250 ml containers	D21/000250
	for 500 ml containers	D21/000500
	for 1 litre containers	D21/001000
	for 2 litre containers	D21/002000
	for 3 litre containers	D21/003000
	for 5 litre containers	D21/005000

Quick action locking couplings (two couplings are required for every container)	Part number
for containers from 125 ‒ 1000 ml	D22/000001
for containers from 2 ‒ 5 litre	D22/000003

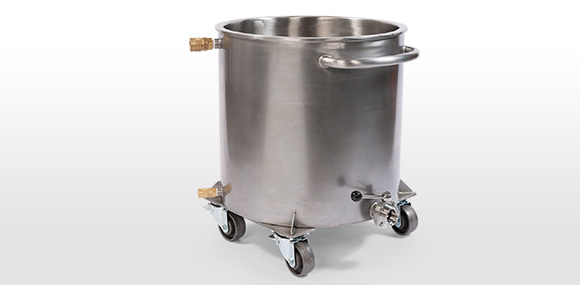

Double‒walled, temperature‒controlled stainless steel containers with carrying handles and drain valve (industrial design)

Containers from 10 to 50 litres have a product outlet with male thread. The product outlet can be equipped with a ball valve or a flap valve as an option. In addition, the dispersion containers can be delivered with wheels, legs or a two‒part cover. Please request your desired options.

Container volume	Internal diameter	Height without wheels	Height incl. wheels
Container 10 litre	22 cm	30 cm	38 cm
Container 15 litre	25.5 cm	34 cm	42 cm
Container 20 litre	28 cm	37 cm	45 cm
Container 25 litre	30 cm	39.5 cm	47.5 cm
Container 35 litre	33.5 cm	43.5 cm	51.5 cm
Container 50 litre	38 cm	48.5 cm	56.5 cm

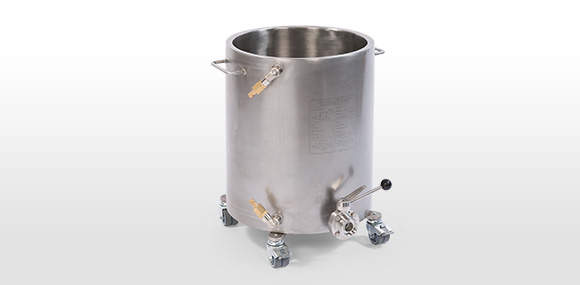

Double‒walled, temperature‒controlled stainless steel containers with handles, wheels and ball valve (industrial design)

The large double‒walled containers with a volume from 75 to 250 litres are used in pilot plants and in production and have an optional ball valve. The smooth running wheels and the practical handles allow these containers to be handled easily.

Container volume	Internal diameter	Height with wheels	Part number
Container 75 litre	44.2 cm	69 cm	SK-DB-0075
Container 100 litre	49.2 cm	71.9 cm	SK-DB-0100
Container 150 litre	59.2 cm	77 cm	SK-DB-0150
Container 200 litre	64.2 cm	83 cm	SK-DB-0200
Container 250 litre	69.2 cm	87 cm	SK-DB-0250

Special containers and customized products

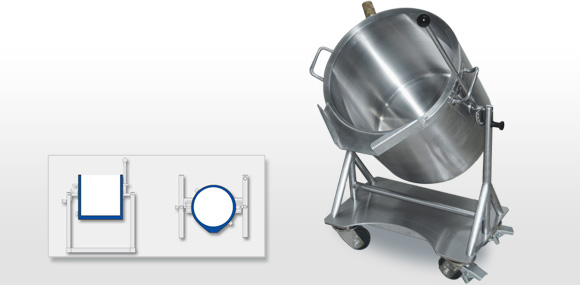

Swivel type containers

Stainless steel slewable double wall temperature control containers, with tilting device and pouring lip. The pouring lip and handle allow easy and safe decanting. The containers can be easily and quickly removed from the stand for mixing or cleaning purposes

Container volume	Internal diameter	Height with wheels	Part number
Container 10 litre	23.8 cm	47 cm	D25/KSA010
Container 15 litre	27.8 cm	58 cm	D25/KSA015
Container 25 litre	32 cm	58.3 cm	D25/KSA025
Container 50 litre	39.6 cm	68 cm	D25/KSA050
Container 60 litre	44.2 cm	93 cm	D25/KSA060
Container 80 litre	44.2 cm	100 cm	D25/KSA080

Coated containers

All single‒walled and double‒walled containers are available with different coating options for the internal walls.
